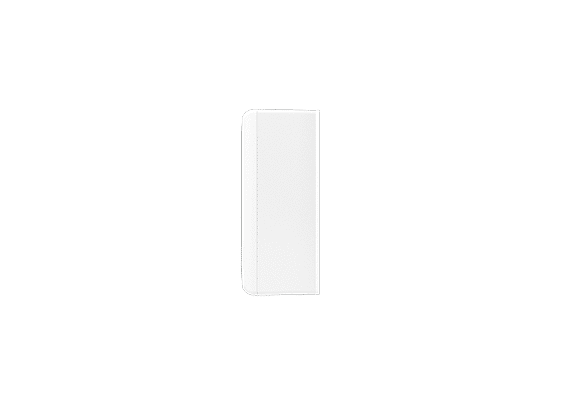

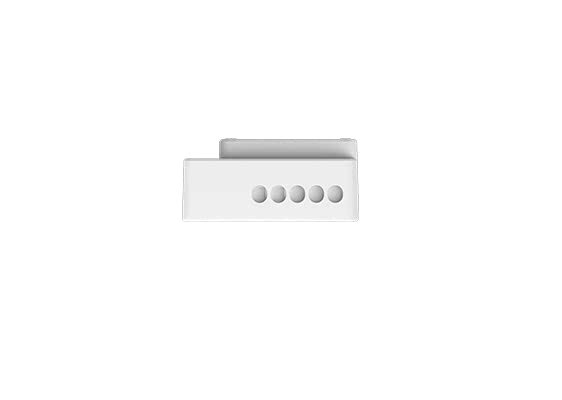

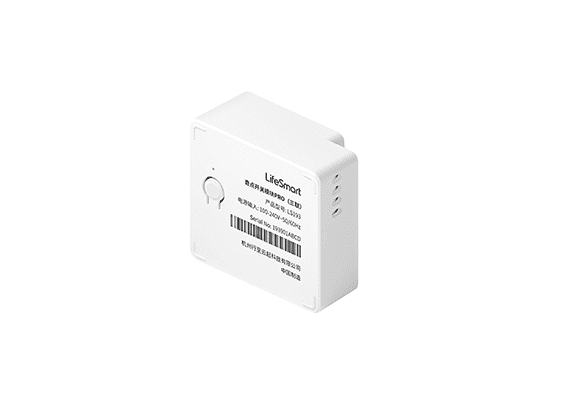

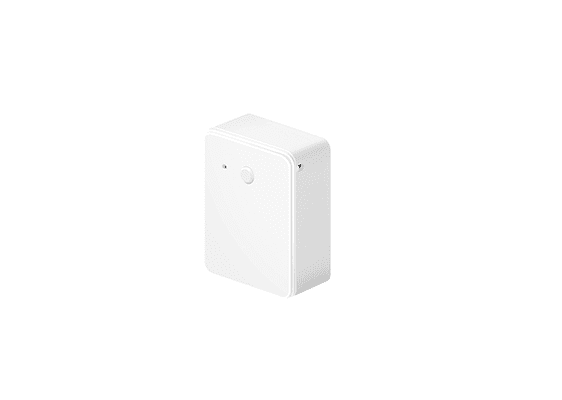

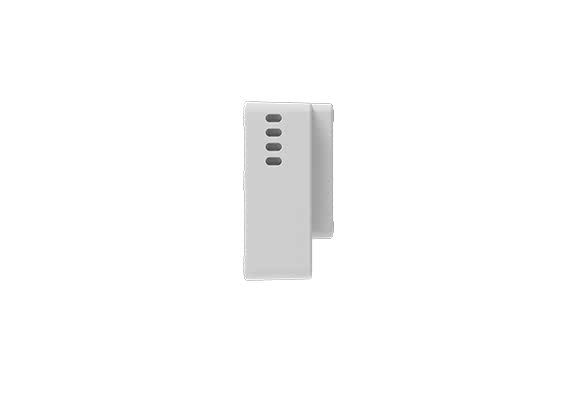

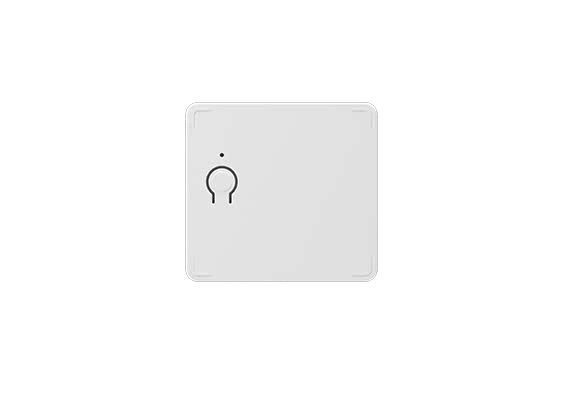

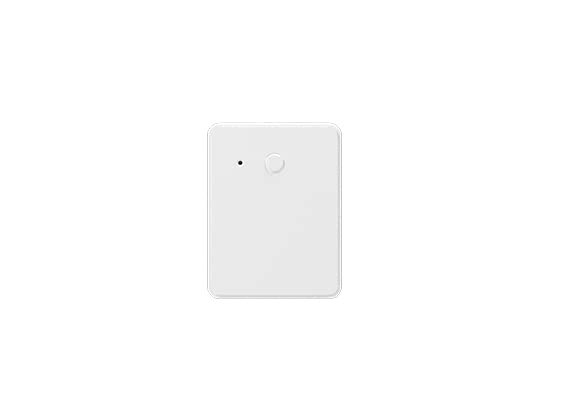

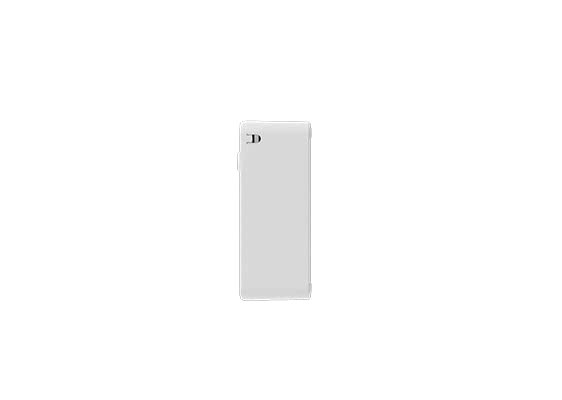

Interruptor inalámbrico Cube

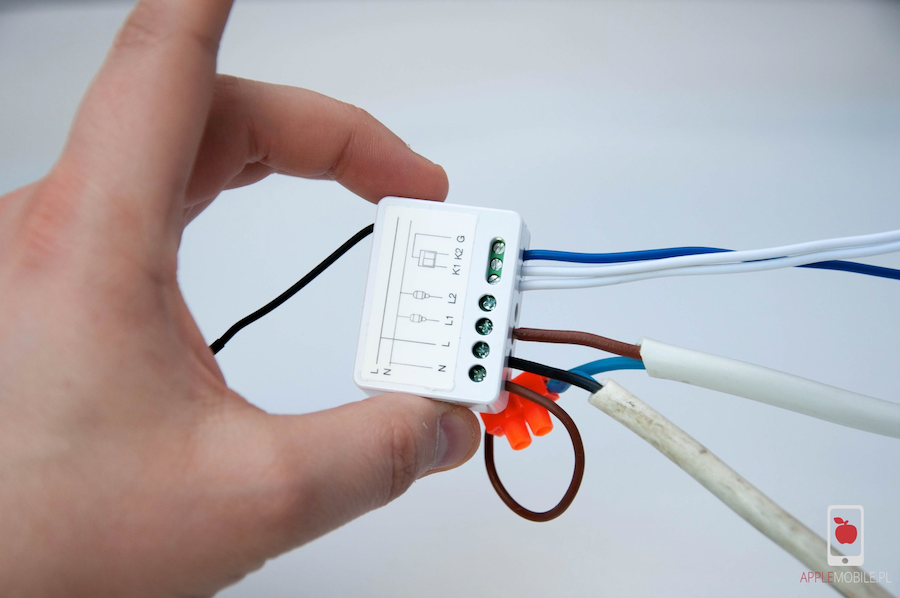

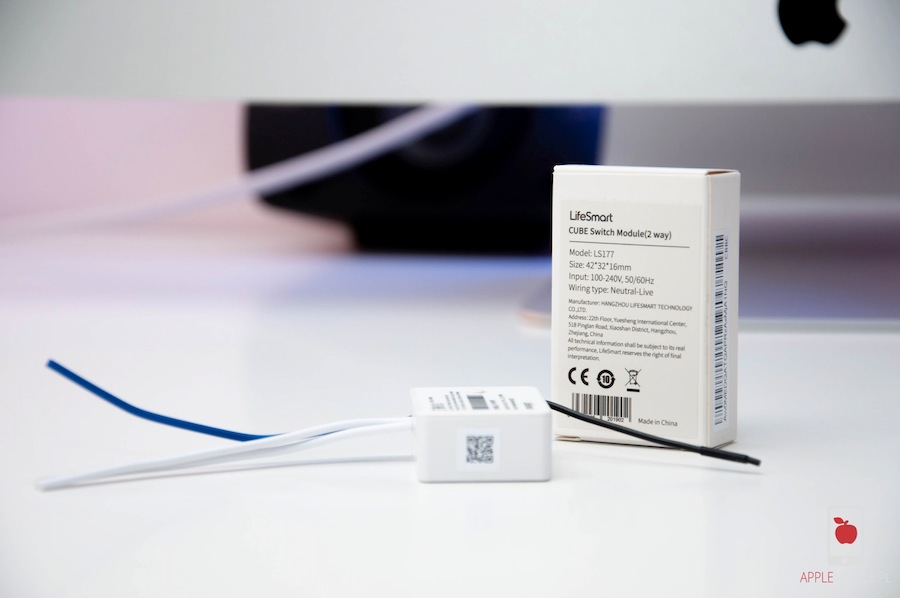

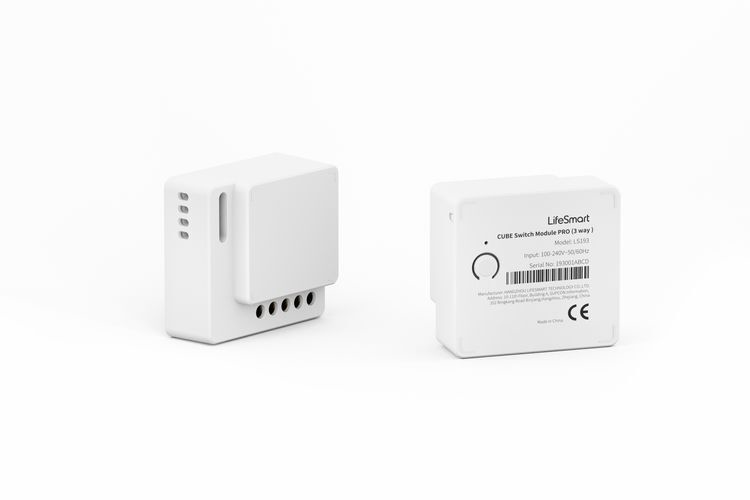

El módulo de conmutación LifeSmart CUBE tiene un tamaño extremadamente pequeño.
Descargar ficha
ESPECIFICACIONES
| General | |
| Model Number | LS176(1 way) / LS177(2 way) |
| Wiring | Live+neutral |
| Control Unit | 8A magnetic latching relay |
| Operating Temperature | -5~45°C |
| Operating Humidity | 5~90% |
| Power Supply | AC 100-240V 50/60Hz |
| Static Consumption | <0.3W |
| Maximum Overload | Resistive load: 300W per way Inductive/Capacitive load: 150W per way |
| Indicator | LED |
| Button | Pairing button |
| Radio | |
| Radio Protocol | CoSS |
| Signal Range(Open Field) | 100m |
| Construction | |
| Color | Ivory white |
| Dimension | 42*32*16mm |
| Weight | 20g(1 way) / 25g(2 way) |
| Casing | Flameresistant PC |
