Polar Switch
Polar Switch
Polar Switch
Polar Switch

Polar Switch

Polar Switch es con tecnología baja en consumo, sin neutro, controla cargas o escenas sin cableado. Diseño moderno blanco. Ideal para retrofit.


Descargar ficha

Work with amazon alexa works with the Google Assistant

ESPECIFICACIONES

  General
Control Unit16A magnetic latching relay
Operating Temperature
-5~45°C
Operating Humidity
5~90%
Power SupplyAC 100-240V 50/60Hz
Static Consumption<1mW
Maximum Overload

Resistive load: 500W (one way)

Capacitive/Reductive load: 200W (one way)

Battery Type
ER18505M(CR17505、ER17505)
Battery Life5 years
 Construction
Color

White

Dimension120*70*35mm
Casing

ABS+PC

 Radio
Radio ProtocolCoSS
Signal Range (Open Field)

200m

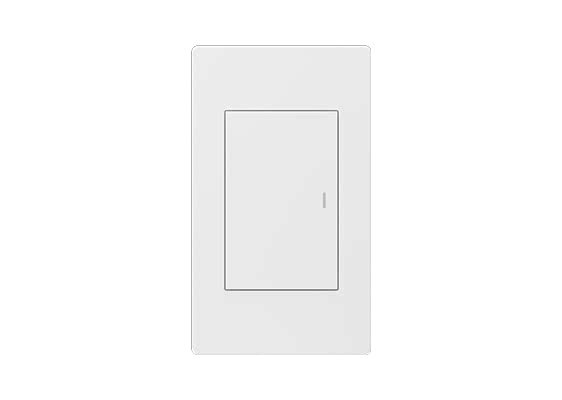

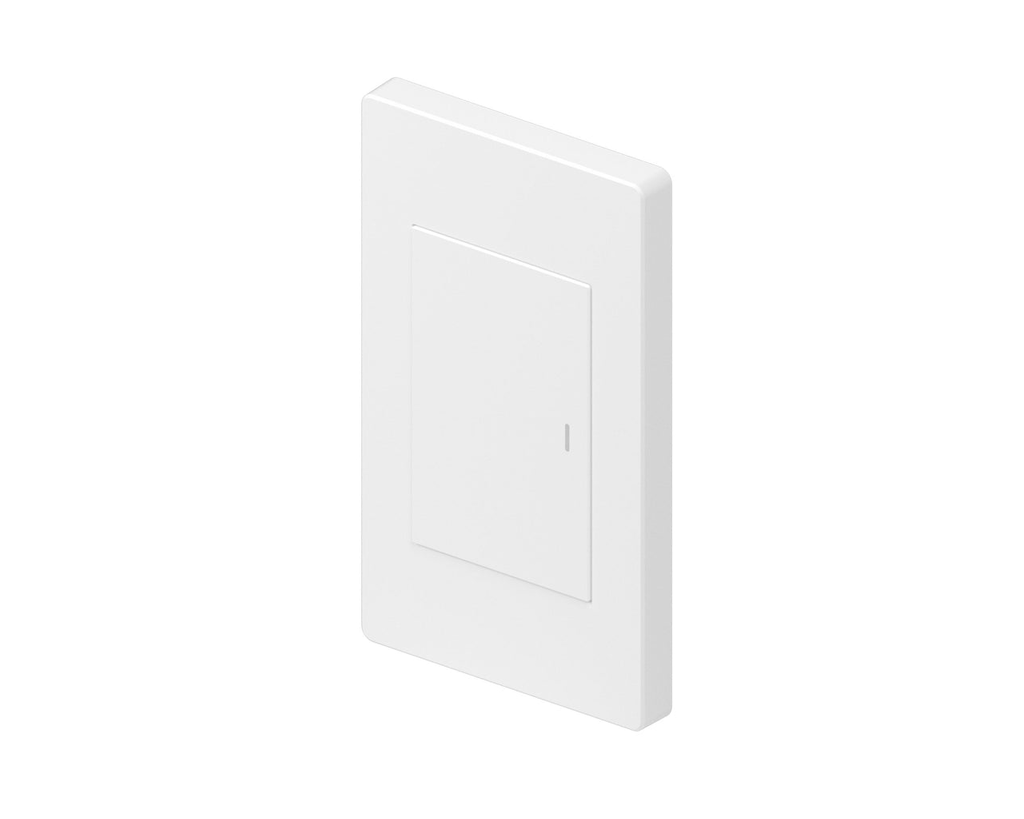

Polar Switch (1 way)
Model NumberLS211
WiringLive only / Live+neutral
Weight141g
 Polar Switch (2 way)
Model NumberLS212
WiringLive only / Live+neutral
Weight152g

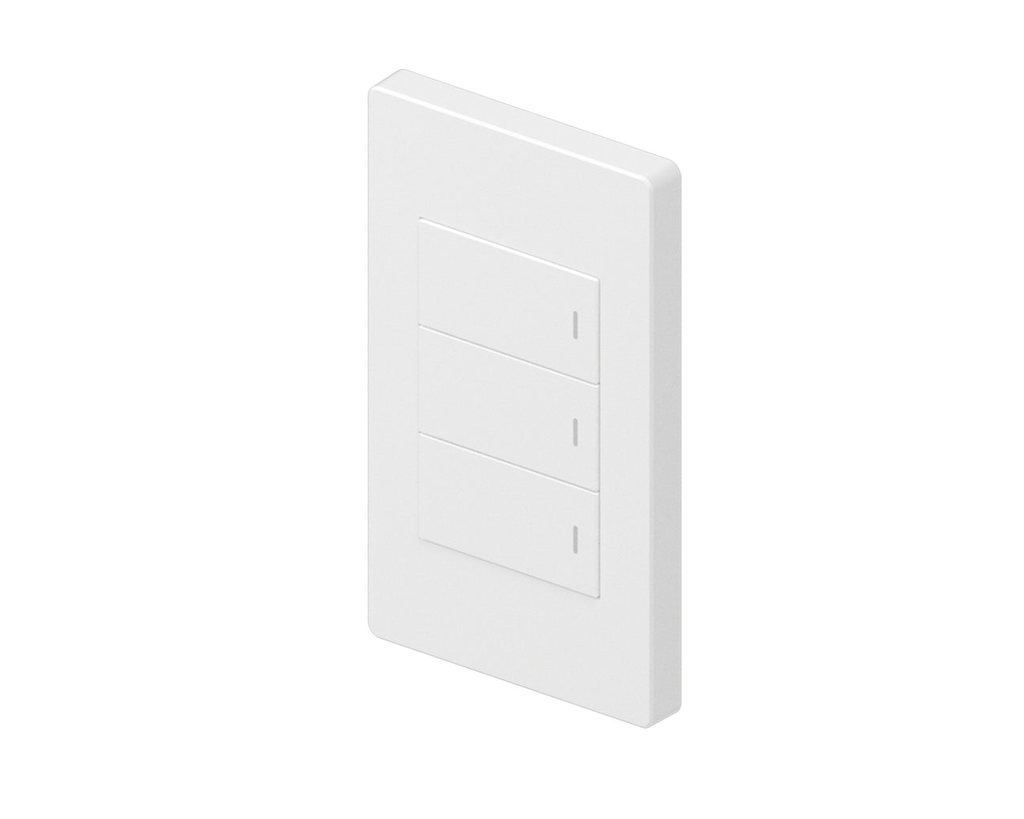

 Polar Switch (3 way)
Model NumberLS213
WiringLive only / Live+neutral
Weight163g
 Polar Multi-control Accessory
Model NumberLS214
Wiring

No wiring

Weight120g
